AA-13G-500 Solid State Amplifier

1-3 GHz, 500 W
Small form factor rack-mounted system
Class AB linear LDMOS design
Instantaneous wide bandwidth
Suitable for all single channel modulation standards
Built-in protection circuits
High reliability and ruggedness

Overview
Electrical Specifications
Environmental Characteristics
Mechanical Specifications

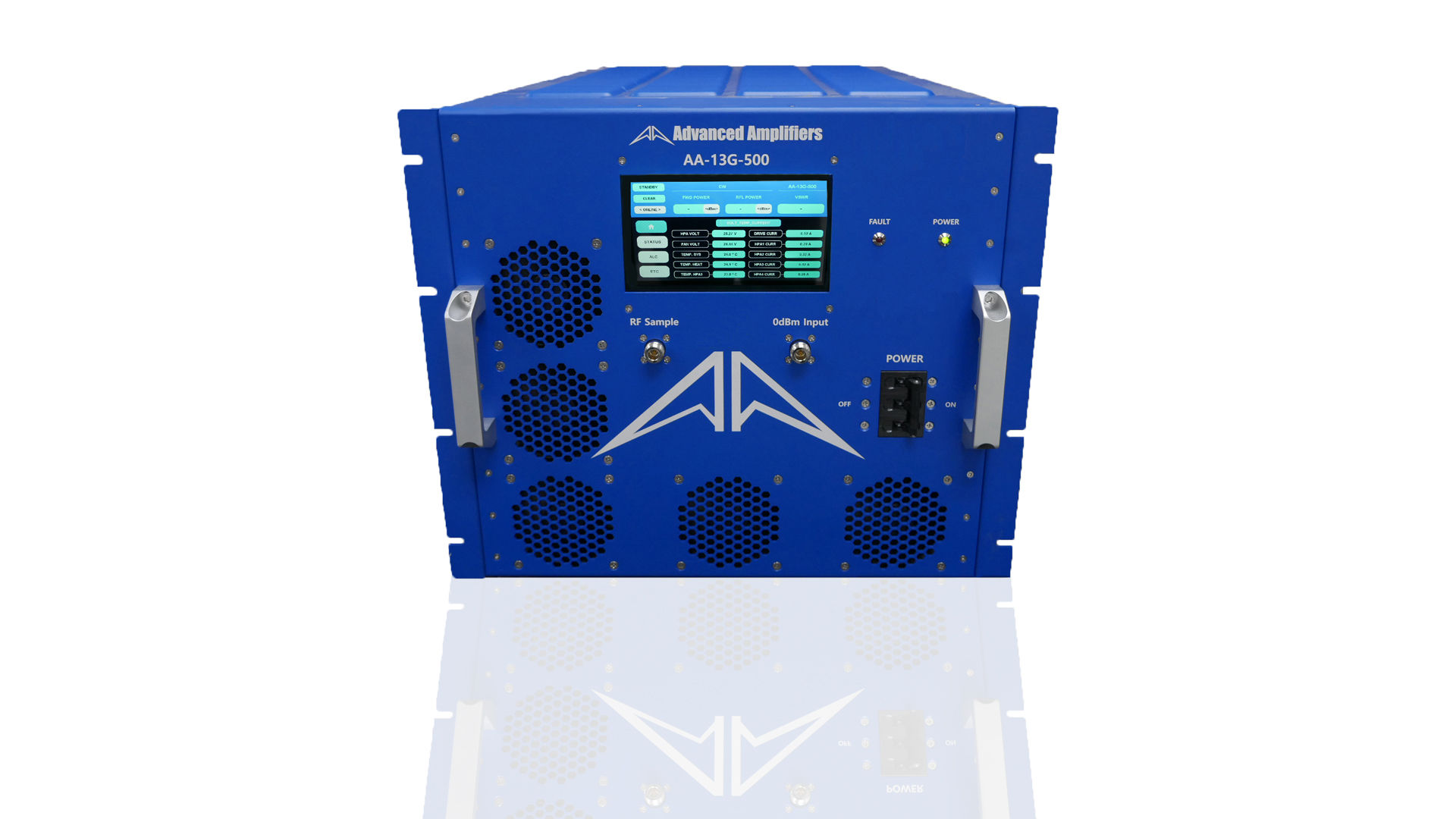

The Advanced Amplifiers AA-13G-500 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 1.0 - 3.0 GHz and generates 500 W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-13G-500 has a power gain of 57 dB minimum and operates with an input of 180 - 240 VAC single-phase (3 KW).

The AA-13G-500 is lightweight and has a low-profile (5U) build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-13G-500 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.
