AA-10M1G-100 Solid State Amplifier
- 10-1000 MHz, 100 W
- Rack mounted system
- Class AB linear LDMOS design
- Instantaneous wide bandwidth
- Suitable for all single channel modulations standards
- Built-in protection circuits
- High reliability and ruggedness
Overview
Electrical Specifications
Environmental Characteristics
Mechanical Specifications

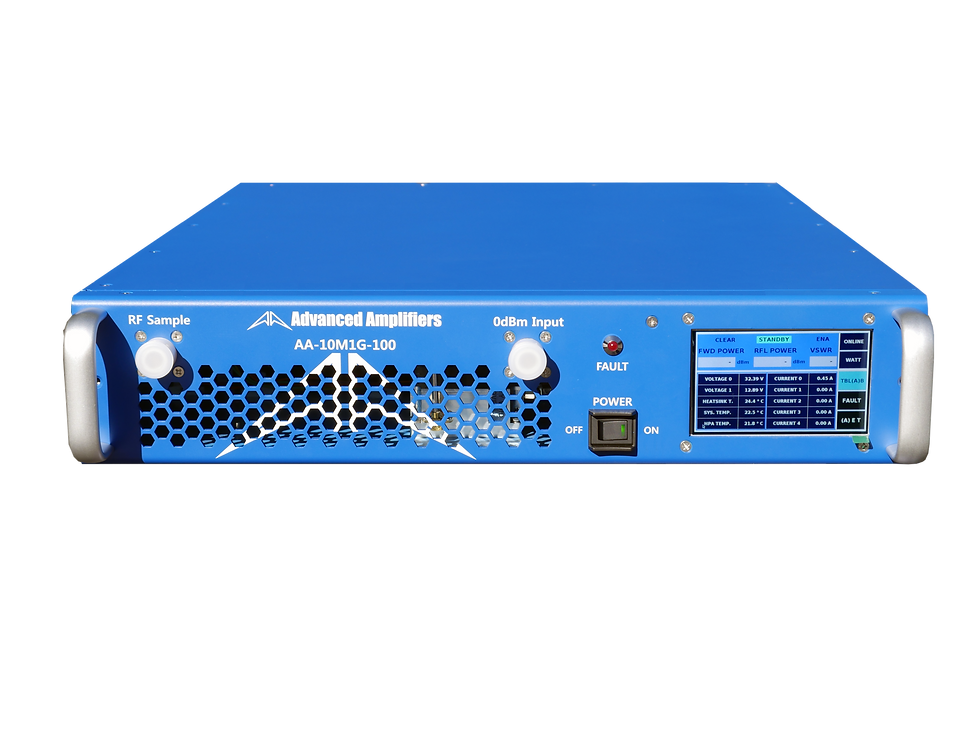

The Advanced Amplifiers AA-10M1G-100 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 10 - 1000MHz and generates 100W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-10M1G-100 has a power gain of 50 dB minimum and operates with an input of 100 – 240 VAC 1-phase (700W).
The AA-10M1G-100 is lightweight and has a low-profile (2U) build, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifier AA-10M1G-100 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.
